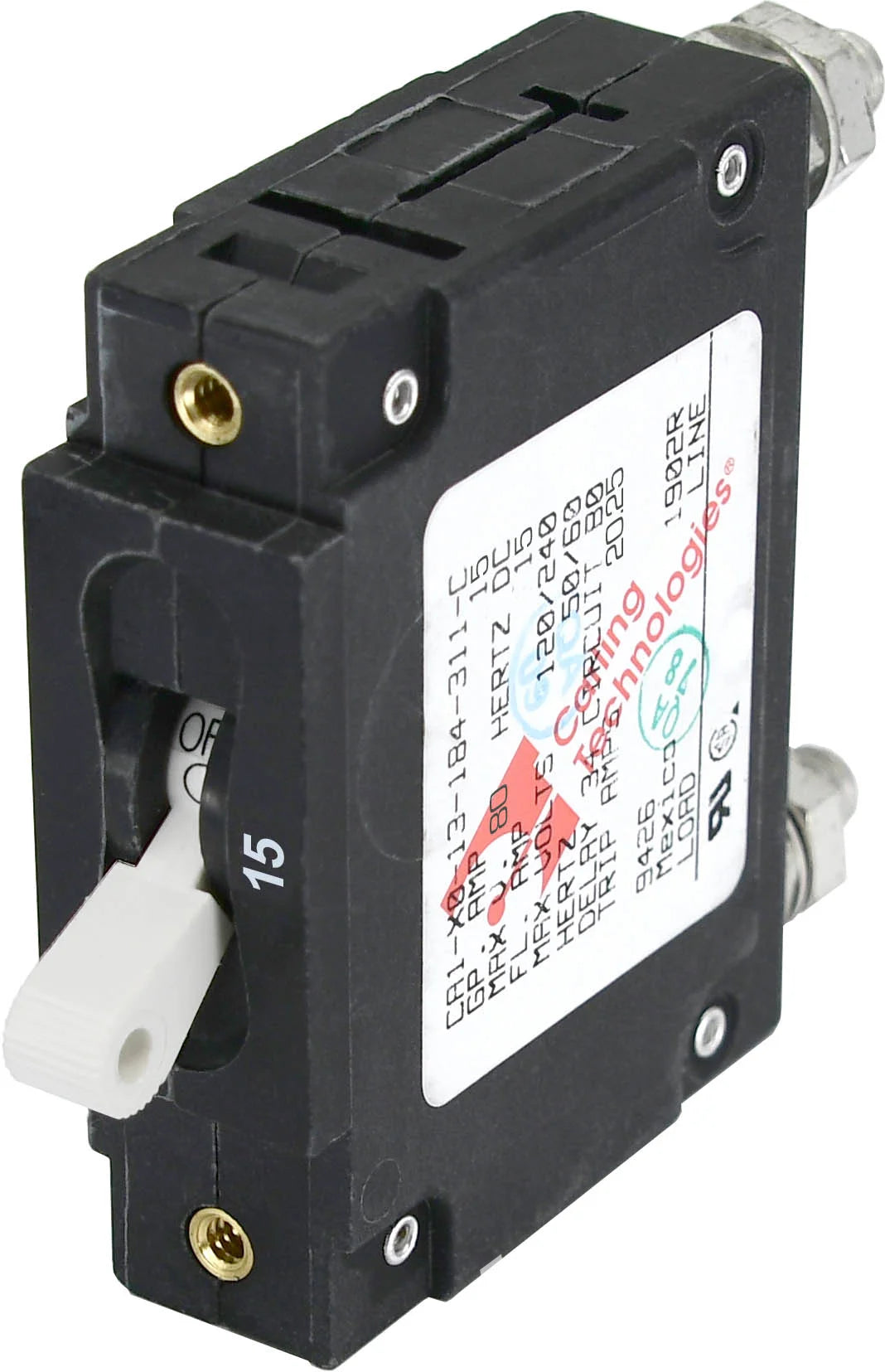

Breaker for Refridgerator - 15 Amp
Breaker for Refridgerator - 15 Amp

Breaker for Refridgerator - 15 Amp

20% off
$29.99
$37.49
Select The Options Above
30-Day Returns

Unused items in original packaging can be returned within 30 days of delivery.

Description

  • Provides overcurrent protection for inverters, bow thrusters, and windlasses
  • Combines switching and circuit protection into a single device
  • "Trip Free"—cannot be held closed after trip
Amperage 15A AC
15A DC
Color White
Actuator Style  Toggle
Poles 1
Maximum Voltage 240V AC
80V DC
Circuit Breaker Type Magnetic Hydraulic - trip free
Terminal Stud 1/4-20 Tin-Plated Brass
Terminal Stud Torque 35 in-lb (3.95 Nm)
Interrupt Capacity  5000A @ 125V AC
5000A @ 240V AC
10000A @ 80V DC
Minimum Operating Temperature -40° C, -40° F
Maximum Operating Temperature 85° C, 185° F
Mounting Screw #6-32 Stainless Steel
Mounting Screw Torque 6 in-lb (0.68 Nm)
Switching Cycles 10000
Weight 0.25lb (0.11 kg)
