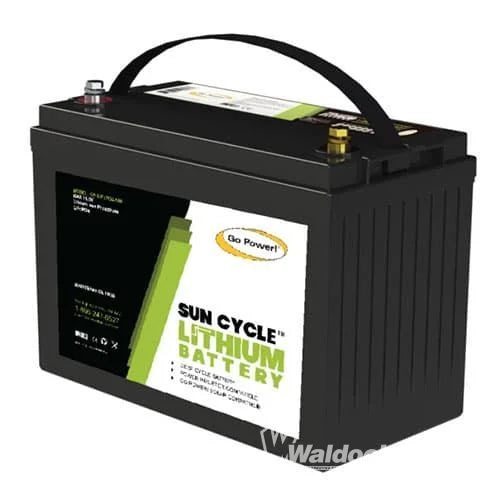

100Ah Lithium Iron Phosphate Solar Battery
GP-LIFEPO4-100
Efficient, high-powered performance. 100Ah Lithium Iron Phosphate Solar Battery. Built for solar.
MODEL: GP-LIFEPO4-100
Go further off-the-grid with the new Go Power! 100ah Lithium Iron Phosphate solar battery. Built specifically for mobile applications, this deep cycle battery is ideal for use in an RV. This 100-amp hour battery is a drop-in replacement for Class 31 Lead-Acid.
Product Overview
- Compatible with all Go Power! solar, inverters and charge controllers
- Max Power Capacity; carries almost double the power of regular batteries
- Lightweight
- Quick charging
- Built-in Battery Management System (BMS)
- Over and under voltage protection
- Over and under temperature protection
- Charge and discharge over current protection
- Short circuit protection
- Drop-in replacement for Group 31 Lead Acid or AGM batteries
- 10-year warranty
- Quick Start Guide (GP-LIFEPO4-100-12V) | Download
- Spec Sheet (GP-LIFEPO4-100-12V) | Download
- Battery Components (GP-LIFEPO4-100-12V) | Download
Safety Features
Go Power! Lithium batteries feature a built-in Battery Management System (or, BMS) which ensures safety and long battery life by constantly monitoring battery performance, internal temperature, and other critical elements required in safely functioning battery. Go Power! LiFePO4 Lithium batteries feature several safety components in the BMS, which include:
-
Over and under voltage protection, which disconnects the battery from the load or charger, to prevent damage if it occurs
-
Over and under temperature protection, which also disconnects from the load if the temperature limits are exceeded
-
Charge and discharge over current protection, which automatically balances the voltages during recharge cycles to bring all the battery cells to full charge at the same time, ensuring longer battery life.
-
Short circuit protection, which open circuits the battery terminals if a short is detected
Lithium Iron Phosphate batteries ship under Class 9 Dangerous Goods PI 965 Section IA, which requires special carrier instructions. Please contact your carrier company to determine their requirements for shipping.
Safety Precautions
- Do not wire in series.
- Maximum 4 batteries per bank in parallel.
- Only suitable for 12-volt applications.
- Do not get wet.
SPECIFICATIONS
-
Technology: Lithium Iron Phosphate
-
Nominal Voltage: 12.8 V
-
Rated Capacity: 100Ah
-
Nominal Operating Temperature: 77 ± 5°F (25 ± 3°C)
-
Maximum Charge Voltage: 14.6 VAC
-
Charge Cut-off Voltage: 14.6 VAC
-
Discharge Cut-off Voltage: 8.4 VAC
-
Recommended Charge Current: 50A
-
Maximum Charge Current: 100A
-
Maximum Discharge Current: 100A (continuous); 120A (30 minutes); 150A (5 seconds)
-
Over-charge Protection Voltage: 14.6V
-
Internal Resistance: ≤ 7.5 mΩ
-
Over-charge Protection Voltage of a single cell: 2.1V
-
Maximum Temperature Protect Charge: 32°F (0°C) to 131°F (55°C)
-
Maximum Discharge Temperature Range: -4°F (-20°C) to 131°F (55°C)
-
BMS Leakage Current: ≤3mA
-
Operating Temperature: Charge: 32°F (0°C) to 131°F (55°C) | Discharge: -4°F (-20°C) to 131°F (55°C)
-
Storage Temperature: 1 Week: -4°F (-20°C) to 122°F (50°C) | 1 month: -4°F (-20°C) to 113°F (45°C) | 6 months: -4°F (-20°C) to 104°F (40°C)
-
Humidity: Operating: 5% to 90% RH | Storage: 45% to 85% RH
-
Certifications: UN 38.3; CE
-
Cycle Life: ≥1500 @ 100% Depth of Discharge; ≥3000 @ 80%; ≥4500 @ 30%
-
Product Warranty: 10-year (Prorated)
Dimensions & Other Specs
-
Length: 12.9 in / 328 mm
-
Width: 7 in / 178 mm
-
Height: 9.2 in / 233.7 mm
-
BCI Group #: 31
-
Weight: 36 lbs / 16.33 kg
-
Carrying: Nylon Straps
Materials
-
Case and Cover: ABS
-
Active: LiFePO4
-
Venting Valve: Rubber, opening pressure 8-20kPa
